Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The LM15851NKE10 requires a specific bias voltage and current to operate optimally. Ensure that the input voltage is within the recommended range (4.5V to 18V) and that the output voltage is set correctly using the feedback resistors. Also, make sure to follow the recommended startup and shutdown procedures to avoid damage to the device.
Operating the LM15851NKE10 at high temperatures can affect its performance, reliability, and lifespan. High temperatures can increase the device's power consumption, reduce its efficiency, and accelerate aging. Ensure that the device is operated within the recommended temperature range (−40°C to 125°C) and that proper thermal management is implemented to prevent overheating.
To troubleshoot issues with the LM15851NKE10, start by checking the input and output voltages, as well as the device's operating frequency. Ensure that the device is properly biased and that the feedback loop is stable. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The LM15851NKE10 is a switching regulator, which can generate electromagnetic interference (EMI). To minimize EMI, ensure that the device is properly shielded, and that the PCB layout is designed to reduce radiation. Follow good EMC design practices, such as using a solid ground plane, minimizing loop areas, and using EMI filters or shielding components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM15851NKE10 Overview

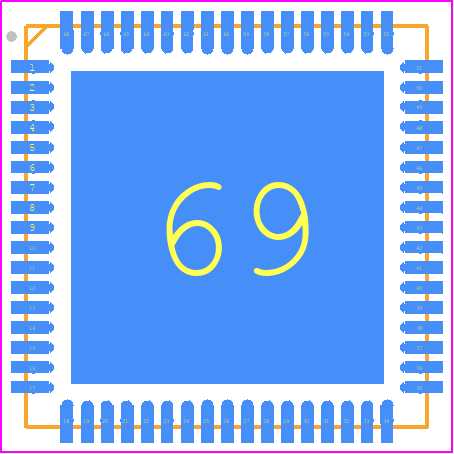

Use the download button to access the LM15851NKE10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM158,
or try a keyword search, such as Other Telecom ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
