LM1875T/LF05 - Texas Instruments

Description: Audio Amplifiers 20-W Audio Power Amplifier 5-TO-220 0 to 70

Download LM1875T/LF05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LM1875T/LF05 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

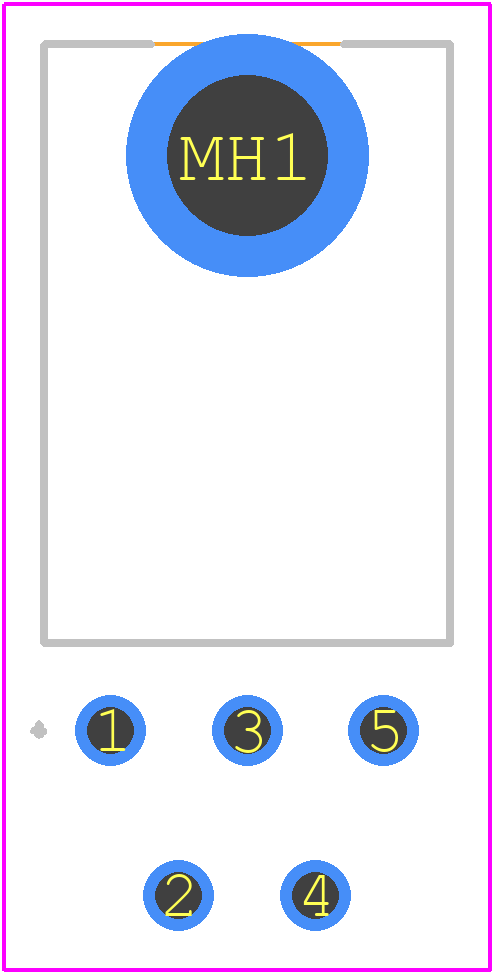

LM1875T/LF05 - Texas Instruments PCB footprint - Other - Other - NEB0005E
click to zoom
3D Models
LM1875T/LF05 - Texas Instruments - 3D model - Other - NEB0005E
click to zoom

LM1875T/LF05 Details

  • Manufacturer Part Number:

    LM1875T/LF05

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPERATES WITH 16V TO 60V SUPPLY

  • Bandwidth-Nom:

    70 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    90 dB

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PZFM-T5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP5H,.15,.7,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    16 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

LM1875T/LF05 Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected between the power supply pins (VCC and GND) and placed as close to the IC as possible.
  • To ensure stability, TI recommends using a minimum of 100pF capacitor between the output pin (OUT) and the inverting input pin (IN-), and a minimum of 10kΩ resistor between the output pin (OUT) and the non-inverting input pin (IN+).
  • The maximum output current of the LM1875T is 250mA. However, it's recommended to limit the output current to 100mA for optimal performance and to prevent overheating.
  • Yes, the LM1875T can be used as a headphone amplifier. However, it's essential to ensure that the output power is limited to prevent damage to the headphones or hearing loss. A maximum output power of 100mW per channel is recommended.
  • To reduce noise and hum, TI recommends using a well-regulated power supply, keeping the input and output traces as short as possible, and using a shielded cable for the input signal. Additionally, using a 10uF capacitor between the power supply pins (VCC and GND) can help reduce noise.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM1875T/LF05 Overview

Use the download button to access the LM1875T/LF05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM187, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
