A good PCB layout for the LM1877M-9/NOPB involves keeping the input and output stages separate, using a star-ground configuration, and placing the decoupling capacitors close to the IC. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce noise and electromagnetic interference (EMI).
The choice of gain resistors (Rf and Ri) depends on the desired gain and input impedance. A higher gain requires smaller resistors, while a lower gain requires larger resistors. Using different values can affect the amplifier's frequency response, input impedance, and noise performance. It's essential to consult the datasheet and perform simulations to determine the optimal resistor values for your specific application.
The LM1877M-9/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-temperature environments. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, reducing the power supply voltage and minimizing the output current can help reduce the device's power dissipation and temperature.
Common issues with the LM1877M-9/NOPB can be troubleshooted by checking the PCB layout, power supply, and component values. Oscillation can be caused by poor layout, inadequate decoupling, or incorrect gain resistor values. Distortion can be caused by overdriving the input, using incorrect component values, or inadequate power supply filtering. Consult the datasheet and application notes for troubleshooting guidelines and simulation tools to help identify and resolve issues.
The LM1877M-9/NOPB is susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To ensure compliance with regulatory requirements, it's essential to use proper shielding, filtering, and grounding techniques. This includes using a metal shield around the amplifier, filtering the power supply and input signals, and ensuring good grounding and decoupling. Consult the datasheet and relevant regulatory standards (e.g., FCC, CE) for specific guidelines and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM1877M-9/NOPB Overview

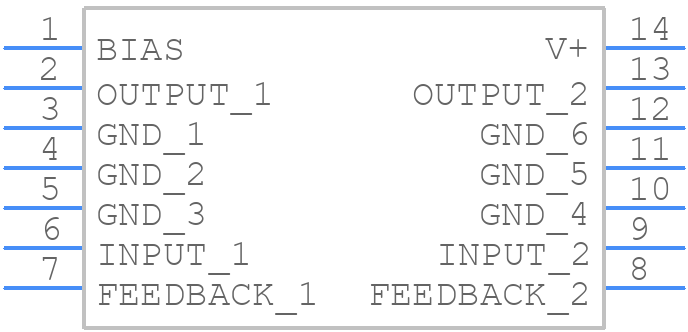

Use the download button to access the LM1877M-9/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM187,
or try a keyword search, such as Audio/Video Amplifiers
