The maximum power dissipation of the LM1877M-9 is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is 20W for the SOIC package, but this can be derated based on the ambient temperature. For example, at 50°C ambient temperature, the maximum power dissipation is around 15W.
To ensure stability in the LM1877M-9, it is recommended to use a compensation capacitor (Cc) between pins 1 and 8, as shown in the datasheet. The value of Cc depends on the gain and bandwidth of the amplifier. A general rule of thumb is to use a capacitor value between 10nF to 100nF. Additionally, it is important to ensure that the layout is well-designed and that the power supply is decoupled properly.
The minimum supply voltage for the LM1877M-9 is 3V, and the maximum supply voltage is 30V. However, it is recommended to operate the device within the range of 5V to 24V for optimal performance.
Yes, the LM1877M-9 can be used as a headphone amplifier. It has a high current capability and low distortion, making it suitable for driving headphones. However, it is important to ensure that the output stage is properly biased and that the output impedance is matched to the headphones.
To protect the LM1877M-9 from overvoltage, it is recommended to use a voltage regulator or a zener diode to clamp the supply voltage. For overcurrent protection, a current-limiting resistor or a fuse can be used in series with the output stage. Additionally, it is important to ensure that the device is operated within its maximum power dissipation rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM1877M-9 Overview

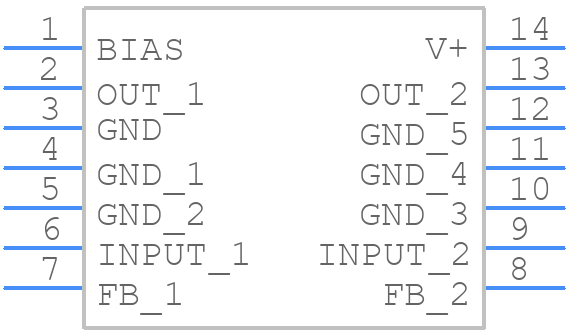

Use the download button to access the LM1877M-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM187,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
