LM236DG4-2-5 - Texas Instruments

Description: V-Ref Precision 2.49V 10mA 8-Pin SOIC

Download LM236DG4-2-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

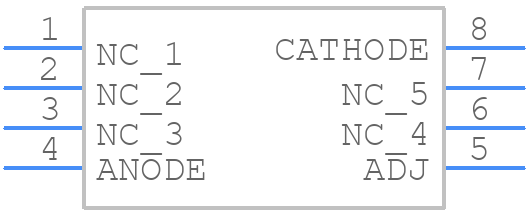

Symbol
LM236DG4-2-5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM236DG4-2-5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM236DG4-2-5 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM236DG4-2-5 Details

  • Manufacturer Part Number:

    LM236DG4-2-5

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1992-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    2.54 V

  • Output Voltage-Min:

    2.44 V

  • Output Voltage-Nom:

    2.49 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    52 ppm/°C

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

LM236DG4-2-5 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM236DG4-2-5 is 40V. Exceeding this voltage can cause damage to the device.
  • The LM236DG4-2-5 has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to use a heat sink or thermal management system to keep the device within a safe operating temperature range.
  • To ensure stability with capacitive loads, it's recommended to use a minimum output capacitance of 10uF with an ESR (Equivalent Series Resistance) of less than 5 ohms. Additionally, the output capacitor should be placed as close to the output pin as possible to minimize parasitic inductance.
  • No, the LM236DG4-2-5 is a linear voltage regulator and is not designed for use in switching regulator applications. It's intended for use in low-dropout, low-power applications where a high degree of line and load regulation is required.
  • The minimum input voltage required for the LM236DG4-2-5 to maintain regulation is typically around 2.5V above the output voltage. For example, for a 5V output, the minimum input voltage would be around 7.5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM236DG4-2-5 Overview

Use the download button to access the LM236DG4-2-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM236, or try a keyword search, such as Voltage References
