Part Image

LM239D - Texas Instruments

Description: Quad differential comparator, commercial grade

Download LM239D Model

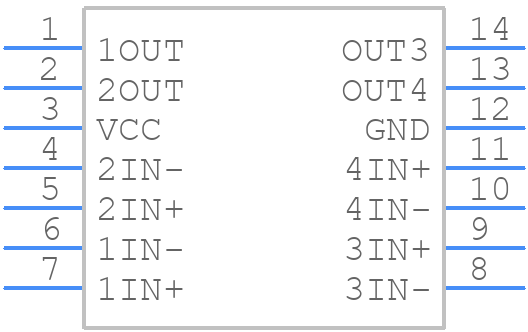

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM239D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
LM239D - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

LM239D Details

  • Manufacturer Part Number:

    LM239D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Lifetime Buy

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0.98

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM239D Overview

Use the download button to access the LM239D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM239, or try a keyword search, such as Comparators

Parts related to LM239D

Showing 0 results

LM239D Alternates

Showing results

Image Part Number Model
Part Image LM339D Rochester Electronics LLC

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14, SOIC-14

Part Image LM339DG Rochester Electronics LLC

Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14, HALOGEN FREE AND ROHS COMPLIANT SOIC-14

Part Image LM239DR2 onsemi

QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, SOIC-14

Part Image 933655960602 NXP Semiconductors

IC QUAD COMPARATOR, 9000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, PDSO14, PLASTIC, SOT-108-1, SO-14, Comparator

Part Image LM239DRE4 Texas Instruments

QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, GREEN, PLASTIC, SOIC-14

For a full list of alternate parts for LM239D, check out Findchips.com
