The maximum operating temperature range for the LM239DG4 is -40°C to 125°C. While the datasheet specifies an operating temperature range of -40°C to 85°C, the device can withstand up to 125°C for short periods of time.
Yes, the LM239DG4 can be used as a comparator with an open-drain output. To do this, connect the output to a pull-up resistor and a voltage source. The output will be pulled low when the input voltage exceeds the reference voltage.
To prevent ESD damage, handle the LM239DG4 with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Additionally, use ESD-protected workstations and tools when handling the device.
To minimize noise and oscillations, use a star-ground configuration, keep the input and output traces short and separate, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, place decoupling capacitors close to the device to filter out high-frequency noise.
No, the LM239DG4 is not designed to be used as a voltage regulator. It is a quad differential comparator, and its output is not designed to source or sink significant current. Using it as a voltage regulator may result in unstable operation and reduced reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM239DG4 Overview

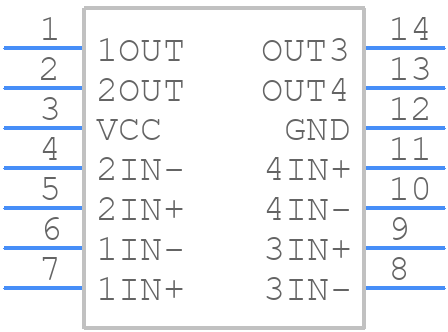

Use the download button to access the LM239DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM239,
or try a keyword search, such as Comparators
