- Part Number LM2405T
- Manufacturer Texas Instruments
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

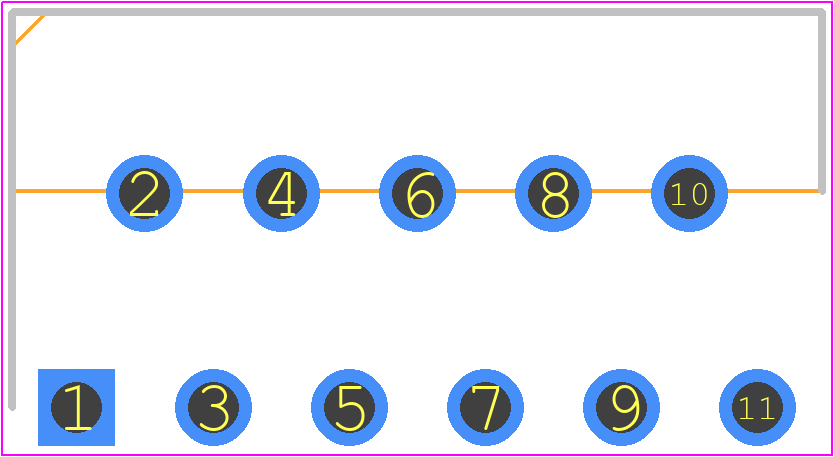

- Footprint Name Transistor Outline, Vertical - 11-Lead Molded TO-220
- Released Date Apr 6, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2405T Details
-
Manufacturer Part Number:
LM2405T
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Consumer IC Type:
VIDEO AMPLIFIER
LM2405T Frequently Asked Questions (FAQs)
-
The LM2405T can handle input voltages up to 40V, but it's recommended to keep it below 30V for optimal performance and reliability.
-
To ensure the LM2405T operates within its SOA, make sure to keep the input voltage, output current, and power dissipation within the recommended limits. Also, ensure proper thermal management and heat sinking to prevent overheating.
-
For optimal performance, it's recommended to follow a compact, symmetrical layout with short traces and minimal inductance. Place the input and output capacitors close to the IC, and use a solid ground plane to reduce noise and EMI.
-
Choose input and output capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are good options. The recommended capacitance values are 10uF for the input and 22uF for the output.
-
The minimum ESR required for the output capacitor is 0.05 ohms. However, it's recommended to use capacitors with even lower ESR (e.g., 0.01 ohms) for better performance and stability.
Trust Checks
Community Provided
System Verified
Community Approved
LM2405T Overview

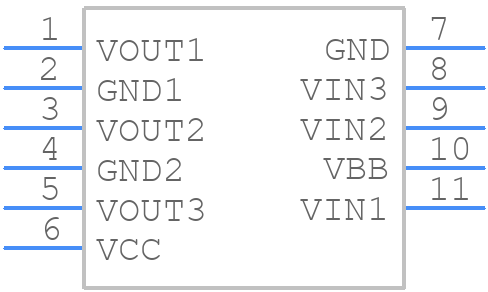

Use the download button to access the LM2405T schematic symbol, PCB footprint, and 3D model.
