- Part Number LM2412ATA
- Manufacturer Texas Instruments
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

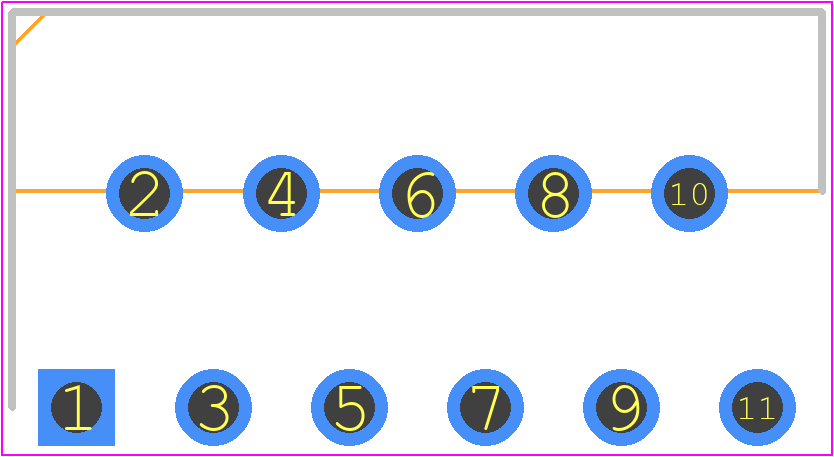

- Footprint Name Transistor Outline, Vertical - 11-Lead Molded TO-220
- Released Date Aug 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2412ATA Details
-
Manufacturer Part Number:
LM2412ATA
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ZIP, ZIP11,.2,.17,67TB
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Consumer IC Type:
VIDEO AMPLIFIER
-
JESD-30 Code:
R-PZIP-T11
LM2412ATA Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LM2412ATA is 2.2W, but it can be limited by the thermal resistance of the package and the ambient temperature.
-
To ensure stability, a minimum output capacitance of 10uF is recommended, and the ESR (Equivalent Series Resistance) of the capacitor should be less than 1 ohm. Additionally, a 1uF capacitor on the input pin can help to filter out noise and improve stability.
-
The dropout voltage of the LM2412ATA is typically around 1.5V, which means that the input voltage must be at least 1.5V higher than the output voltage to maintain regulation.
-
The LM2412ATA is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to derate the power dissipation at high temperatures to ensure reliability.
-
A transient voltage suppressor (TVS) or a zener diode can be used to protect the LM2412ATA from input voltage surges. Additionally, a series resistor and a capacitor can be used to filter out high-frequency noise and transients.
Trust Checks
Community Provided
System Verified
Community Approved
LM2412ATA Overview

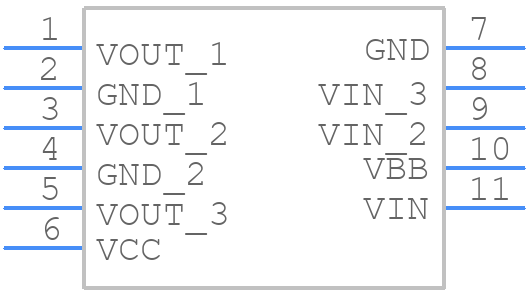

Use the download button to access the LM2412ATA schematic symbol, PCB footprint, and 3D model.
