LM2412T - Texas Instruments

LM2412T Details

• Manufacturer Part Number:

  LM2412T

• Part Life Cycle Code:

  Obsolete

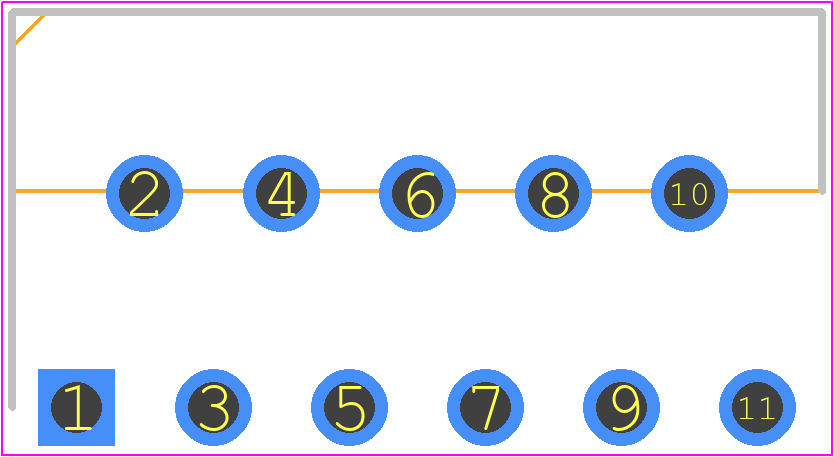

• Package Description:

  PLASTIC, TO-220, POWER PACK-11

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Consumer IC Type:

  VIDEO AMPLIFIER

• JESD-30 Code:

  R-PZFM-T11

• Number of Channels:

  3

• Number of Functions:

  1

• Number of Terminals:

  11

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZFM

• Package Equivalence Code:

  ZIP11(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Supply Voltage-Max (Vsup):

  85 V

• Supply Voltage-Min (Vsup):

  60 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  ZIG-ZAG
