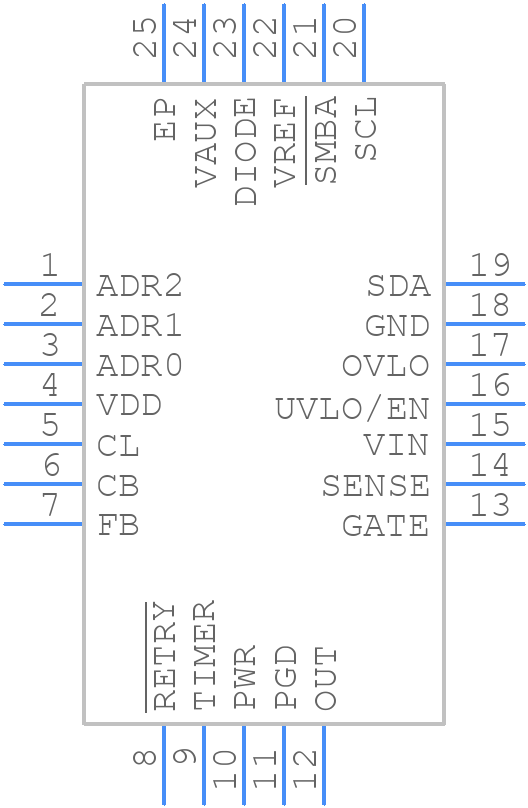

LM25066APSQX/NOPB - Texas Instruments

LM25066APSQX/NOPB Details

• Manufacturer Part Number:

  LM25066APSQX/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  RESET THRESHOLD VOLTAGE IS 2.6 VOLT

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  VOLTAGE SUPERVISOR/RESET IC

• Input Voltage-Max:

  17 V

• Input Voltage-Min:

  2.9 V

• JESD-30 Code:

  R-XQCC-N24

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  500 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16X.2,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  8 mA

• Supply Voltage-Max (Vsup):

  17 V

• Supply Voltage-Min (Vsup):

  2.9 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +2.6V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
