A good PCB layout for the LM25066PSQE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the LM25066PSQE/NOPB operates within its SOA during startup and shutdown, it's recommended to use a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and prevent the device from operating outside its specified voltage range.
The recommended input capacitor type for the LM25066PSQE/NOPB is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device as possible to minimize the effects of parasitic inductance.
To troubleshoot issues with the LM25066PSQE/NOPB, start by checking the input voltage and current, and verifying that the device is operating within its specified temperature range. Use an oscilloscope to check the output voltage ripple and noise, and verify that the output voltage is within the specified range. Check the PCB layout and component placement to ensure that they meet the recommended guidelines.
Yes, the LM25066PSQE/NOPB is qualified for high-reliability and high-temperature applications. It's built with a robust design and uses high-quality components to ensure reliable operation over a wide temperature range. However, it's recommended to follow the recommended operating conditions and guidelines to ensure the device operates within its specified range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25066PSQE/NOPB Overview

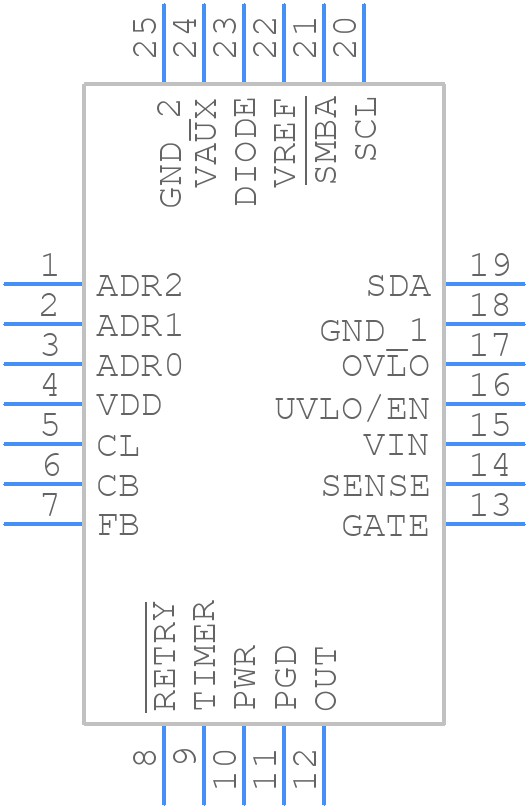

Use the download button to access the LM25066PSQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
