Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general thermal design guidelines, such as placing thermal vias under the device, using a solid ground plane, and keeping the thermal path short and direct.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand the operating temperatures.
The maximum allowed voltage on the enable pin is typically limited to the supply voltage (VIN) of the device. However, it's recommended to check the specific datasheet for the LM2512ASM/NOPB, which states that the enable pin voltage should not exceed VIN + 0.3V.
Yes, the LM2512ASM/NOPB is suitable for switching regulator applications. However, it's essential to ensure that the device is properly configured and that the switching frequency is within the recommended range. Additionally, consider using a suitable output filter to minimize EMI and ensure stable operation.
The power dissipation of the LM2512ASM/NOPB can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current. Consult the datasheet for specific values and calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2512ASM/NOPB Overview

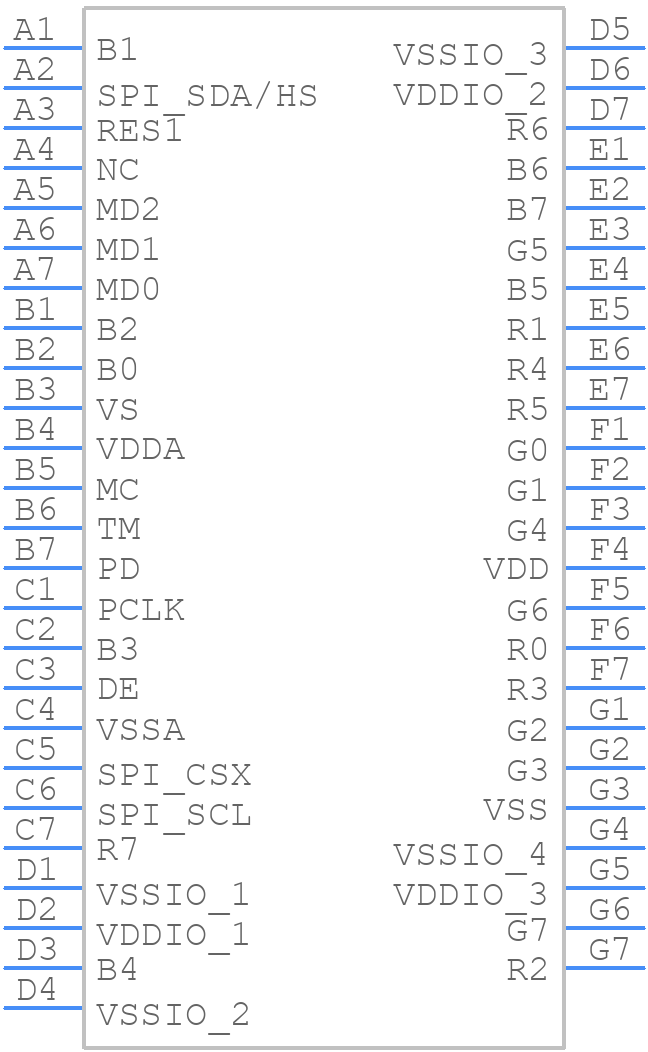

Use the download button to access the LM2512ASM/NOPB schematic symbol, PCB footprint, and 3D model.
