LM2512ASN/NOPB - Texas Instruments

Description: Mobile Pixel Link (MPL-1) 24Bit RGB Display Interf Serializer w/ Optional Dithering & Look Up Table

Download LM2512ASN/NOPB Model

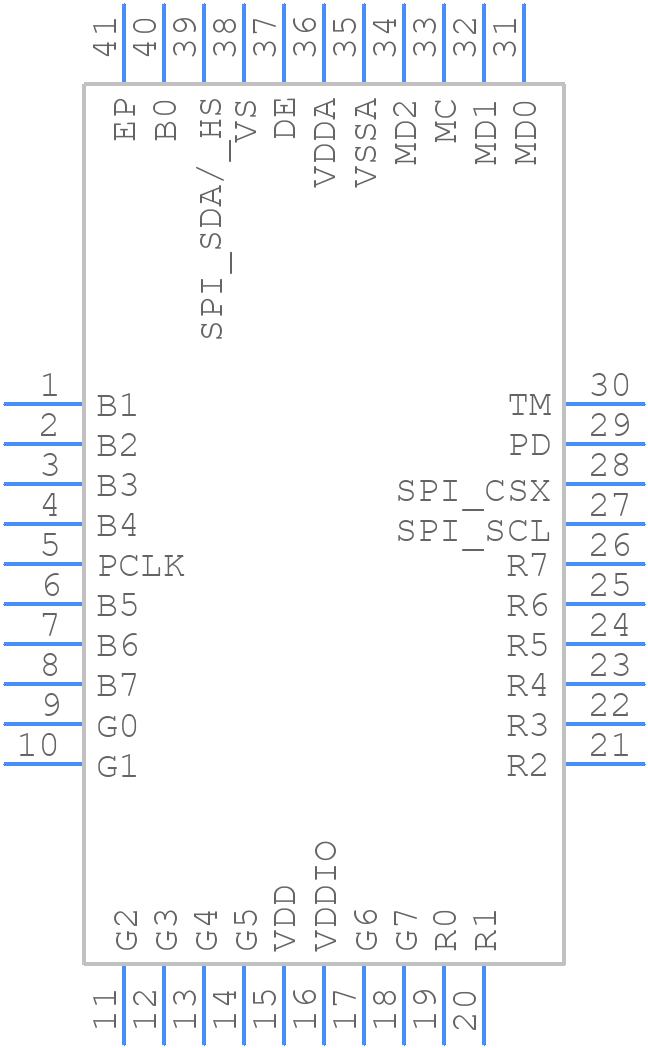

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM2512ASN/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJM0040A
click to zoom
3D Models
LM2512ASN/NOPB - Texas Instruments  - 3D model - Quad Flat No-Lead - NJM0040A
click to zoom

LM2512ASN/NOPB Details

  • Manufacturer Part Number:

    LM2512ASN/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    X2QFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    2 V

  • Supply Voltage1-Min:

    1.6 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LM2512ASN/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. Additionally, keeping the thermal pad connected to the ground plane can help to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, such as keeping the device away from heat sources, using a heat sink if necessary, and ensuring good airflow. Additionally, derating the output current and voltage can help to reduce the device's internal temperature and increase its reliability.
  • Using a different inductor value than recommended can affect the performance and stability of the converter. A smaller inductor value can result in higher ripple current and reduced efficiency, while a larger inductor value can result in slower transient response and increased output voltage ripple. It's essential to consult the datasheet and application notes for guidance on selecting the optimal inductor value for the specific application.
  • To troubleshoot issues with the device's enable pin, check the voltage level on the enable pin to ensure it's within the recommended range. Also, verify that the enable pin is properly connected to a logic-level signal source and that there are no signal integrity issues. If the issue persists, consult the datasheet and application notes for guidance on using the enable pin correctly.
  • To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, such as keeping the switching node away from sensitive analog circuits, using a shielded inductor, and adding EMI filters if necessary. Additionally, ensure that the device is properly decoupled and that the output voltage is filtered to reduce noise and ripple.
