SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM25575QMH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitor is properly sized to handle the inrush current.
When selecting the input capacitor, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). The capacitor should be rated for the maximum input voltage, and the capacitance value should be sufficient to handle the inrush current. A low ESR is also essential to minimize power losses.
To optimize the output filter design, consider the output voltage ripple requirements, the output current, and the desired transient response. A good starting point is to use the recommended output filter components from the datasheet, and then adjust them based on the specific application requirements.
Thermal design considerations include ensuring good airflow around the device, using a heat sink if necessary, and providing a thermal interface material (TIM) between the device and the heat sink. The datasheet provides thermal resistance values, which can be used to estimate the junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25575QMH/NOPB Overview

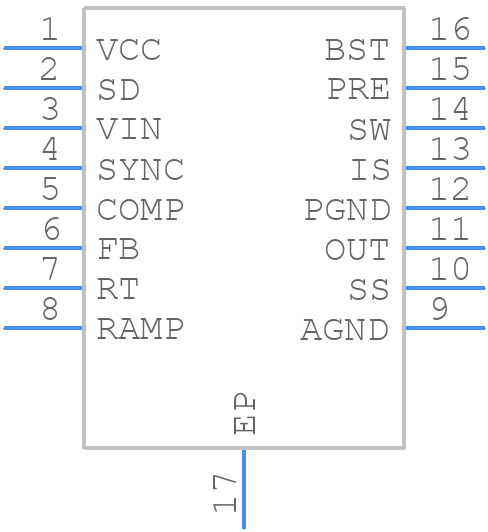

Use the download button to access the LM25575QMH/NOPB schematic symbol, PCB footprint, and 3D model.
