- Part Number LM2588T-5.0
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TO127P457X1016X2052-7P
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2588T-5.0 Details
-
Manufacturer Part Number:
LM2588T-5.0
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Package Description:
BENT STAGGERED, TO-220, 7 PIN
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM2588T-5.0 Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2588T-5.0 is 15V, but it's recommended to keep it below 12V for reliable operation.
-
Yes, the LM2588T-5.0 can be used as a voltage regulator for a microcontroller, but ensure the output current requirement of the microcontroller is within the regulator's current limit (3A) and the input voltage is within the recommended range.
-
The output voltage of the LM2588T-5.0 is fixed at 5V, so no calculation is required. However, if you need a different output voltage, you can use the adjustable version of the regulator, LM2588T, and calculate the output voltage using the formula: Vout = Vref * (1 + R1/R2), where Vref is the reference voltage (1.25V) and R1 and R2 are the resistors used to set the output voltage.
-
The dropout voltage of the LM2588T-5.0 is typically around 1.5V to 2V, which means the input voltage should be at least 1.5V to 2V higher than the output voltage (5V) for the regulator to operate efficiently.
-
The LM2588T-5.0 has an operating junction temperature range of -40°C to 125°C, but it's recommended to keep the operating temperature below 85°C for reliable operation. If you need to operate the regulator in a high-temperature environment, consider using a heat sink or a thermally enhanced package.
Trust Checks
System Verified
LM2588T-5.0 Overview

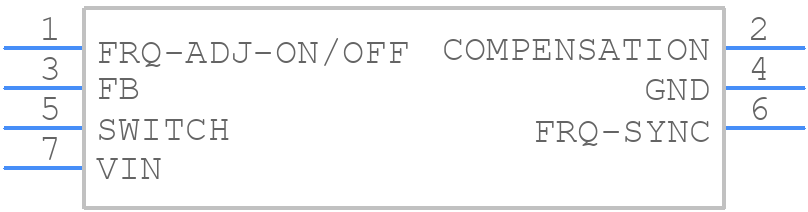

Use the download button to access the LM2588T-5.0 schematic symbol, PCB footprint, and 3D model.
