LM2597M-12/NOPB - Texas Instruments

Description: Texas Instruments LM2597M-12/NOPB, Step Down DC-DC Converter, 500mA, 8-Pin SOIC

Download LM2597M-12/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

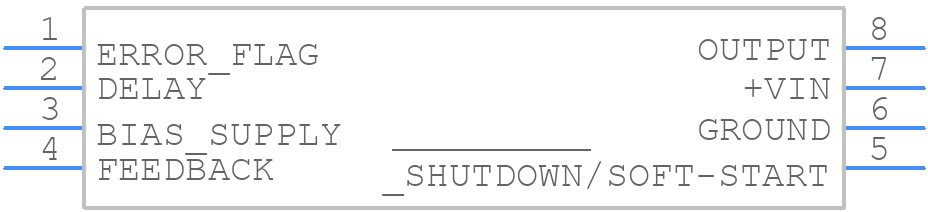

Symbol
LM2597M-12/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2597M-12/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM2597M-12/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM2597M-12/NOPB Details

  • Manufacturer Part Number:

    LM2597M-12/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    173 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM2597M-12/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2597M-12/NOPB is 40V, but it's recommended to keep it below 37V to ensure reliable operation and to prevent damage to the internal circuitry.
  • The LM2597M-12/NOPB has a maximum operating junction temperature of 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to keep the operating temperature below 85°C for optimal performance.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A 10uF to 22uF ceramic or tantalum capacitor is recommended. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The minimum input voltage required for the LM2597M-12/NOPB to operate is around 7V, but it's recommended to keep the input voltage above 8V to ensure reliable operation and to prevent dropout.
  • Yes, the LM2597M-12/NOPB is a switching regulator and is designed for use in switching mode power supply designs. It has a high switching frequency of around 150kHz, which makes it suitable for high-efficiency power supply designs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2597M-12/NOPB Overview

Use the download button to access the LM2597M-12/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM259, or try a keyword search, such as Switching Regulator or Controllers
