The maximum input voltage that can be applied to the LM2597MX-3.3/NOPB is 40V, but it's recommended to keep it below 37V to ensure reliable operation and to prevent damage to the internal components.
The LM2597MX-3.3/NOPB has a maximum operating junction temperature of 125°C. However, it's recommended to keep the operating temperature below 85°C to ensure reliable operation and to prevent thermal shutdown. You can use thermal management techniques such as heat sinks or thermal interfaces to reduce the operating temperature.
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended. Also, ensure that the input voltage is within the recommended range and the input capacitor is properly sized.
The LM2597MX-3.3/NOPB is a switching regulator, and it can generate switching noise. However, you can minimize the noise by using a suitable input filter, such as a ferrite bead or a common-mode choke, and by placing the regulator away from sensitive circuits. You can also use shielding or grounding techniques to reduce the noise radiation.
The output current capability of the LM2597MX-3.3/NOPB depends on the input voltage, output voltage, and ambient temperature. You can use the following formula to estimate the output current capability: Iout = (Vin - Vout) / (Rds(on) * (1 + (ΔIC/IC))), where Rds(on) is the on-resistance of the internal switch, ΔIC is the current sense threshold, and IC is the maximum output current. Refer to the datasheet for the specific values of these parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2597MX-3.3/NOPB Overview

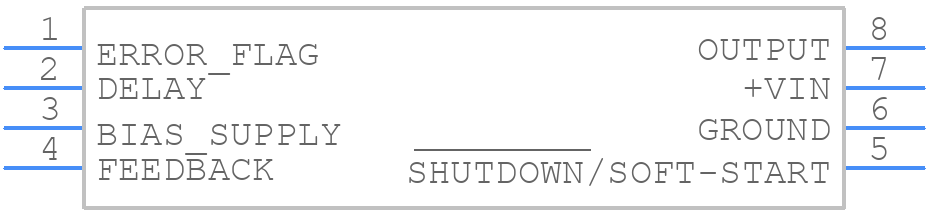

Use the download button to access the LM2597MX-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM259,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
