A good PCB layout for the LM26420Q1XSQ/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure the LM26420Q1XSQ/NOPB operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal design and layout techniques to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range and the output current is within the specified maximum rating.
When selecting input and output capacitors for the LM26420Q1XSQ/NOPB, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. Choose capacitors with low ESR, high capacitance values, and voltage ratings that exceed the maximum input and output voltages.
To troubleshoot issues with the LM26420Q1XSQ/NOPB, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and adequate heat sinking. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult TI's application notes and technical support resources for guidance.
The enable pin of the LM26420Q1XSQ/NOPB allows for power sequencing and shutdown control. Ensure that the enable pin is properly driven and decoupled to prevent unwanted shutdowns or power-up issues. Consult the datasheet and application notes for specific guidance on using the enable pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26420Q1XSQ/NOPB Overview

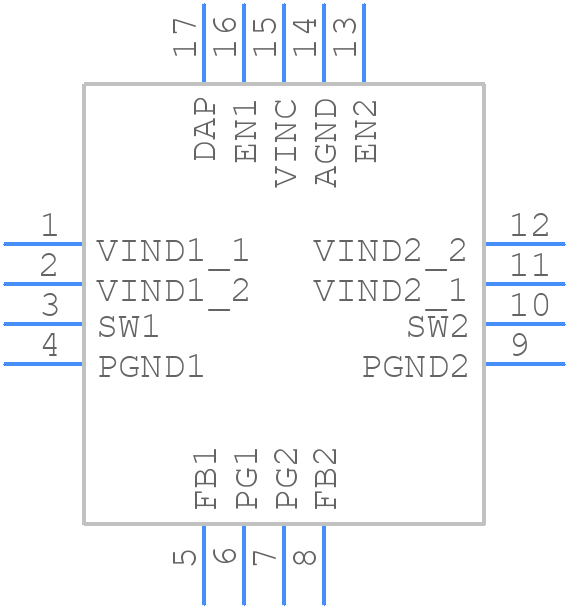

Use the download button to access the LM26420Q1XSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
