A good PCB layout for the LM26480SQX-AA/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure the output capacitor has a low ESR (Equivalent Series Resistance) and the input capacitor has a high ripple current rating. Also, avoid using capacitors with high ESL (Equivalent Series Inductance).
The LM26480SQX-AA/NOPB can operate reliably in an ambient temperature range of -40°C to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
Yes, the LM26480SQX-AA/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the output voltage or current, start by verifying the input voltage and current, and checking the output voltage and current using a multimeter or oscilloscope. Check for any signs of overheating, and ensure the device is properly soldered and the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26480SQX-AA/NOPB Overview

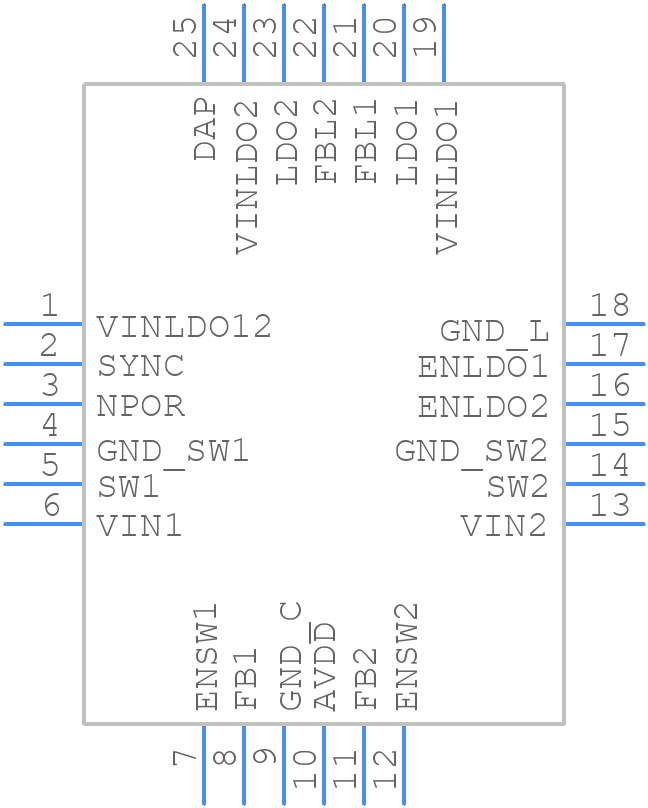

Use the download button to access the LM26480SQX-AA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
