Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output with capacitors, and consider adding a small resistor in series with the output capacitor to dampen oscillations.
The LM2657MTC/NOPB has an operating temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's recommended to follow the thermal design guidelines in the datasheet and consider using thermal management techniques such as heat sinks or thermal interfaces.
Yes, the LM2657MTC/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow the specific requirements and guidelines for these applications, such as AEC-Q100 for automotive or MIL-STD-883 for military applications.
To troubleshoot issues, start by verifying the input voltage, output voltage, and component values. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Also, check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consider consulting the datasheet's troubleshooting section or contacting Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2657MTC/NOPB Overview

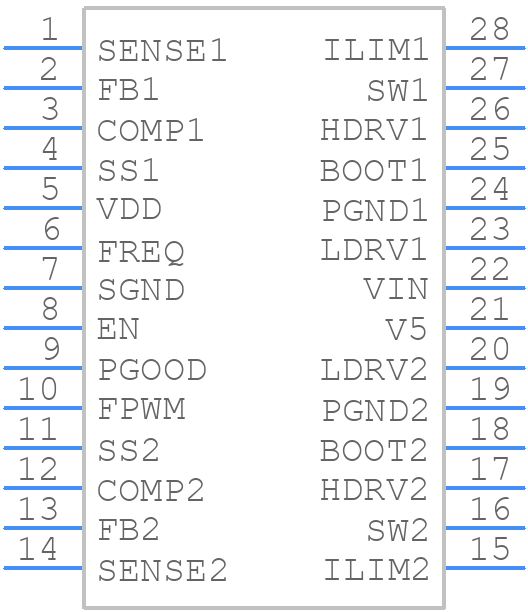

Use the download button to access the LM2657MTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM265,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
