- Part Number LM2672N-ADJ
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

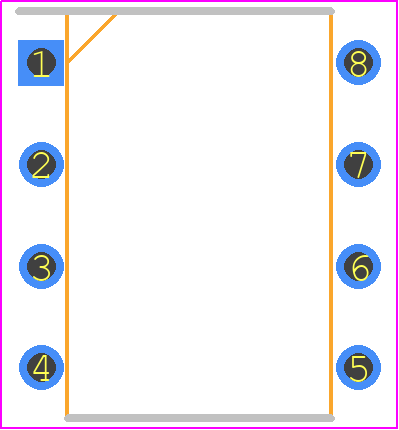

- Footprint Name Dual-In-Line Packages - P (R-PDIP-T8)
- Released Date Jan 11, 2017
- Last Modified Date Jun 7, 2025 5:50 AM UTC
- Pinout / Pin List Click Here (Member Only)
LM2672N-ADJ Details
-
Manufacturer Part Number:
LM2672N-ADJ
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, PLASTIC, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM2672N-ADJ Frequently Asked Questions (FAQs)
-
The minimum input voltage required for the LM2672N-ADJ to operate is 7.5V, but it's recommended to use an input voltage of at least 8V to ensure proper operation and to account for any voltage drops in the system.
-
The output voltage of the LM2672N-ADJ can be adjusted by connecting a resistor divider network between the output pin and the adjust pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula: Vout = 1.245V x (1 + R1/R2).
-
The maximum output current of the LM2672N-ADJ is 3A, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
-
To protect the LM2672N-ADJ from overheating, it's recommended to provide adequate heat sinking, such as a heat sink or a metal pad on the PCB. Additionally, the device should be operated within its recommended operating temperature range, and the input voltage should be kept within the recommended range to minimize power dissipation.
-
Yes, the LM2672N-ADJ is a high-reliability device that is suitable for use in high-reliability applications. It's manufactured using a proprietary BiCMOS process and has undergone rigorous testing and qualification to ensure its reliability and performance.
Trust Checks
System Verified
LM2672N-ADJ Overview

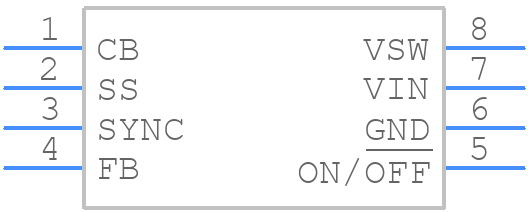

Use the download button to access the LM2672N-ADJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM267,
or try a keyword search, such as Switching Regulator or Controllers
