- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM2676SD-5.0
- Part Number LM2676SD-5.0
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN500X400X100-15N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2676SD-5.0 Details
-
Manufacturer Part Number:
LM2676SD-5.0
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
LLP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM2676SD-5.0 Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2676SD-5.0 is 40V, but it's recommended to keep it below 30V for reliable operation.
-
The LM2676SD-5.0 has a maximum operating junction temperature of 150°C, but it's recommended to keep it below 125°C for reliable operation. You can use thermal management techniques like heat sinks or thermal interfaces to reduce the junction temperature.
-
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 22uF. You can also add a 10nF ceramic capacitor in parallel with the output capacitor to improve stability.
-
Yes, the LM2676SD-5.0 is a switching regulator, and it's designed for use in switching mode power supplies. However, you need to ensure that the input voltage is within the recommended range, and the output voltage is set correctly using the feedback resistors.
-
The output voltage of the LM2676SD-5.0 can be calculated using the formula: Vout = 5.0V * (1 + R2/R1), where R1 and R2 are the feedback resistors. You can use the datasheet's calculation tool or online calculators to determine the correct values for R1 and R2.
Trust Checks
System Verified
LM2676SD-5.0 Overview

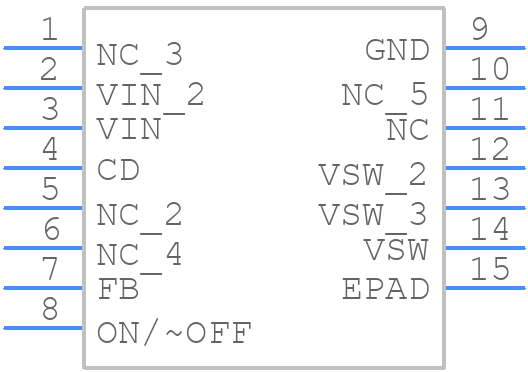

Use the download button to access the LM2676SD-5.0 schematic symbol and PCB footprint.
