- Part Number LM2676T-5.0
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other

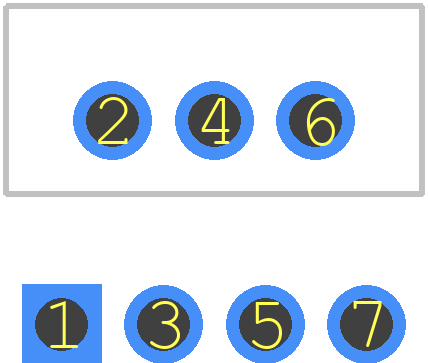

- Footprint Name Other - TO127P457X1016X2052-7P
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2676T-5.0 Details
-
Manufacturer Part Number:
LM2676T-5.0
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Package Description:
TO-220, 7 PIN
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM2676T-5.0 Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2676T-5.0 is 40V, but it's recommended to keep it below 30V for reliable operation.
-
The LM2676T-5.0 has a maximum operating junction temperature of 150°C, but it's recommended to keep it below 125°C for reliable operation. You can use thermal management techniques like heat sinks or thermal interfaces to reduce the junction temperature.
-
To ensure the stability of the output voltage, make sure to use the recommended output capacitor value and type (e.g., 10uF ceramic capacitor), and keep the output capacitor close to the output pin. Also, ensure that the input voltage is within the recommended range and the input capacitor is properly sized.
-
The LM2676T-5.0 is a switching regulator, and it can generate switching noise. However, you can minimize the noise by using a proper PCB layout, keeping the switching node (SW pin) away from sensitive nodes, and using noise-reducing components like ferrite beads or RC filters.
-
The power dissipation of the LM2676T-5.0 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the thermal resistance of the package and the ambient temperature when calculating the power dissipation.
Trust Checks
System Verified
LM2676T-5.0 Overview

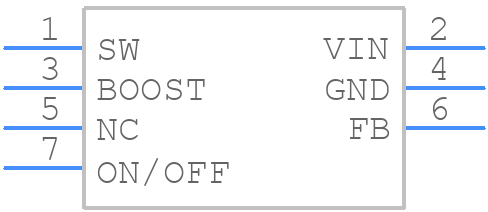

Use the download button to access the LM2676T-5.0 schematic symbol, PCB footprint, and 3D model.
