- Part Number LM2679T-ADJ
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TO127P457X1016X2052-7P
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2679T-ADJ Details
-
Manufacturer Part Number:
LM2679T-ADJ
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Package Description:
TO-220, 7 PIN
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM2679T-ADJ Frequently Asked Questions (FAQs)
-
The minimum input voltage required for the LM2679T-ADJ to operate is 7.5V, but it's recommended to use an input voltage of at least 8V to ensure proper operation and to account for any voltage drops in the system.
-
The LM2679T-ADJ has a maximum operating junction temperature of 150°C, but it's recommended to keep the junction temperature below 125°C for reliable operation. You can use thermal management techniques such as heat sinks or thermal interfaces to keep the temperature within the recommended range.
-
The output voltage of the LM2679T-ADJ can be calculated using the formula: Vout = 1.2V x (1 + R2/R1), where R1 and R2 are the resistors used to set the output voltage. You can use the datasheet's voltage adjustment formula to calculate the exact output voltage for your specific application.
-
The maximum output current of the LM2679T-ADJ is 3A, but it's recommended to derate the output current based on the input voltage and ambient temperature to ensure reliable operation. You can use the datasheet's thermal derating curves to determine the maximum output current for your specific application.
-
Yes, the LM2679T-ADJ is a switching regulator, and it's designed for use in switching power supply designs. However, you need to ensure that the input voltage, output voltage, and output current are within the recommended operating ranges, and that you follow proper layout and design guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation.
Trust Checks
System Verified
LM2679T-ADJ Overview

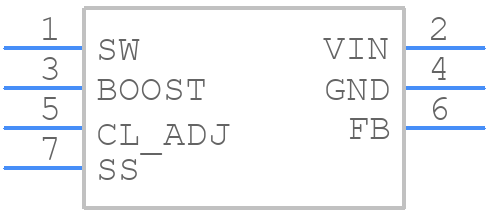

Use the download button to access the LM2679T-ADJ schematic symbol, PCB footprint, and 3D model.
