SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1200 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM27402MH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM27402MH/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is properly heatsinked and the ambient temperature is within the recommended range.
The LM27402MH/NOPB can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillations.
Yes, the LM27402MH/NOPB is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the required standards.
To troubleshoot issues with the device, check the PCB layout, input and output voltage, and output current. Ensure the device is properly heatsinked, and the ambient temperature is within the recommended range. Also, verify that the input and output capacitors meet the recommended specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27402MH/NOPB Overview

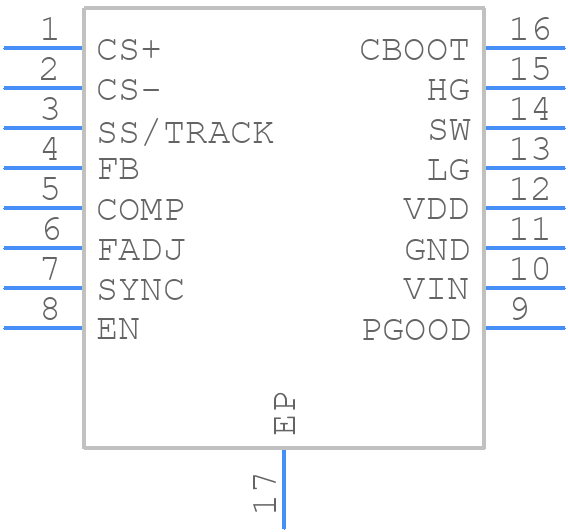

Use the download button to access the LM27402MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM274,
or try a keyword search, such as Switching Regulator or Controllers
