LM27402MHX/NOPB - Texas Instruments

Description: 3-20V, Voltage Mode Synchronous Buck Controller with DCR Current Sensing

Download LM27402MHX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

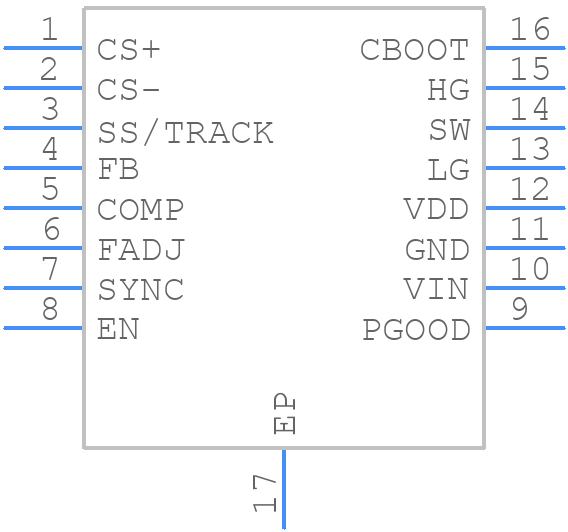

LM27402MHX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM27402MHX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016A-021
click to zoom
3D Models
LM27402MHX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0016A-021
click to zoom

LM27402MHX/NOPB Details

  • Manufacturer Part Number:

    LM27402MHX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SEATED HGT-NOM

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Output Voltage-Max:

    18.6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM27402MHX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM27402MHX/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and improve heat dissipation.
  • To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable voltage reference. Also, ensure that the output capacitor is sufficient to handle the output current and ripple requirements.
  • The LM27402MHX/NOPB is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device for reliable operation above 85°C ambient temperature.
  • Yes, the LM27402MHX/NOPB is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified limits.
