Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the capacitor. Additionally, adding a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins can help improve stability.
While the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to 36V or lower to ensure reliable operation and to prevent damage to the internal components.
The LM2742MTC/NOPB is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the junction temperature (TJ) does not exceed the maximum rating. This may require adding heat sinks, thermal interfaces, or using a thermally-enhanced package.
Start by checking the input voltage, output voltage, and current draw using an oscilloscope or multimeter. Verify that the component values and layout meet the recommended specifications. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If issues persist, consult the datasheet and application notes or contact Texas Instruments support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2742MTC/NOPB Overview

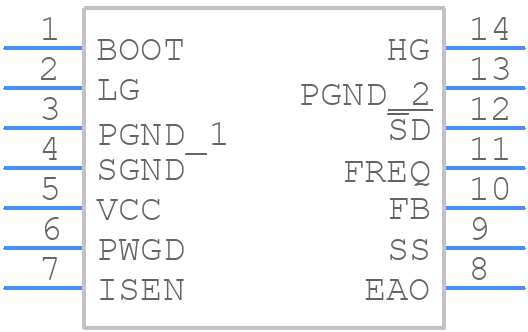

Use the download button to access the LM2742MTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM274,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
