Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
The LM2756 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Be sure to check the thermal derating curves in the datasheet to ensure the device operates within its recommended temperature range.
Yes, the LM2756 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is also suitable for industrial and medical applications. However, be sure to check the specific requirements of your application and ensure the device meets those requirements.
Start by checking the input voltage, output voltage, and current draw to ensure they are within the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the PCB layout and component selection meet the datasheet's recommendations. If issues persist, consult the datasheet's troubleshooting section or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2756TMX/NOPB Overview

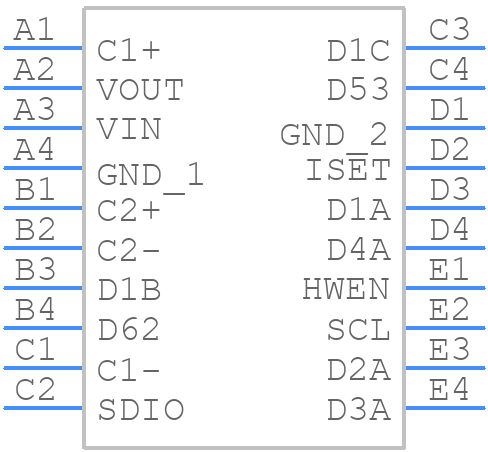

Use the download button to access the LM2756TMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM275,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
