The maximum input voltage that can be applied to the LM2770SD-1215/NOPB is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
The LM2770SD-1215/NOPB is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to use thermal management techniques, such as heat sinks or thermal interfaces, to keep the device temperature within the specified range.
To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF, and to keep the output voltage within the specified range (1.215V to 1.285V). Additionally, the input voltage should be well-regulated and free of noise.
Yes, the LM2770SD-1215/NOPB is suitable for low-power applications, with a quiescent current of around 1.5mA. However, it's recommended to check the power dissipation and thermal management requirements to ensure the device operates within its specified limits.
To protect the LM2770SD-1215/NOPB from input voltage transients, it's recommended to use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, a input capacitor can help to filter out high-frequency noise and transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2770SD-1215/NOPB Overview

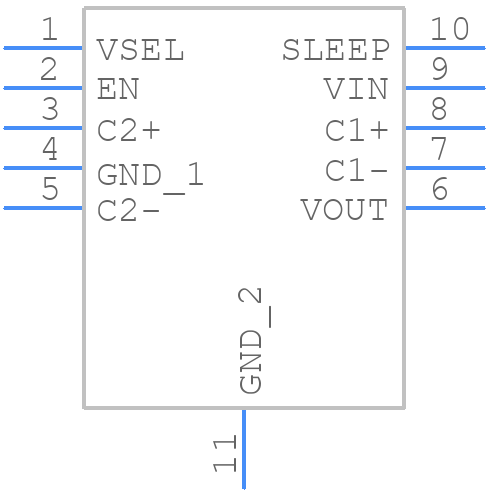

Use the download button to access the LM2770SD-1215/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM277,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
