Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
The LM27951SDX/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
The LM27951SDX/NOPB has an absolute maximum input voltage rating of 42V, but the recommended operating input voltage range is 4.5V to 40V. Exceeding the absolute maximum rating can damage the device.
Yes, the LM27951SDX/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is also suitable for industrial and medical applications. However, ensure that the device is used within its recommended operating conditions and follows the relevant industry standards.
Start by verifying the PCB layout and component values match the recommended design. Check for proper power supply decoupling, input voltage range, and output load conditions. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and seek support from Texas Instruments if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27951SDX/NOPB Overview

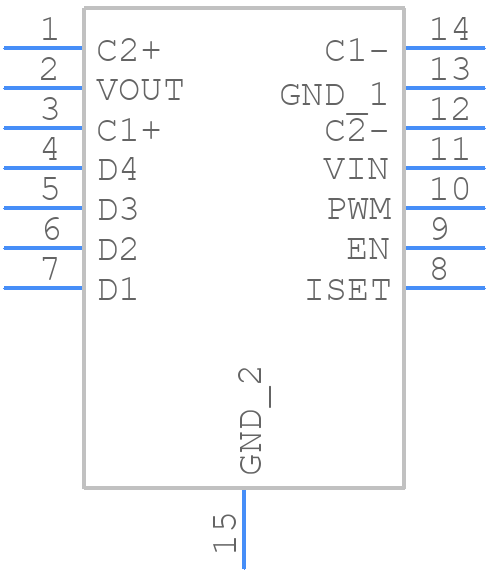

Use the download button to access the LM27951SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM279,
or try a keyword search, such as Display Drivers
