LM2831XSD/NOPB - Texas Instruments

Description: High Frequency 1.5A Load - Step-Down DC-DC Regulator

Download LM2831XSD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

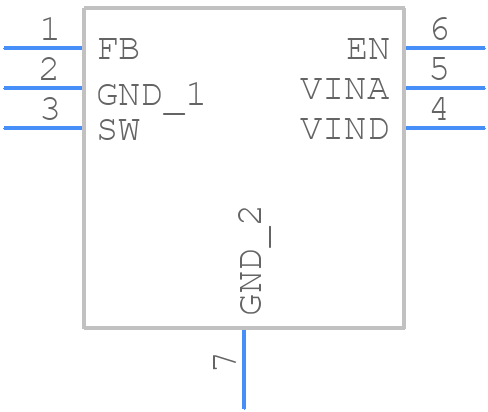

Symbol
LM2831XSD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2831XSD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGG0006A-ren1
click to zoom
3D Models
LM2831XSD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGG0006A-ren1
click to zoom

LM2831XSD/NOPB Details

  • Manufacturer Part Number:

    LM2831XSD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    4.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM2831XSD/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM2831XSD/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins properly to prevent oscillation.
  • The LM2831XSD/NOPB can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range of 7V to 40V for optimal performance and reliability.
  • The LM2831XSD/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • To troubleshoot issues with the LM2831XSD/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
