Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure accurate and stable output voltage, make sure to use a high-quality output capacitor with low ESR, follow the recommended input and output capacitor values, and keep the input voltage within the specified range. Additionally, ensure that the feedback resistors are of high precision and low tolerance.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's best to keep the ambient temperature below 85°C to ensure the device's internal temperature remains within a safe range.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor value and type are carefully selected to ensure optimal performance and efficiency. Using a different inductor may require re-designing the entire circuit and re-characterizing the device's performance.
To troubleshoot issues with the device, start by verifying the PCB layout and component values against the recommended design. Check for any signs of overheating, and ensure that the input and output capacitors are of high quality and properly connected. Use an oscilloscope to measure the output voltage and current, and look for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852XMXA-0.8/NOPB Overview

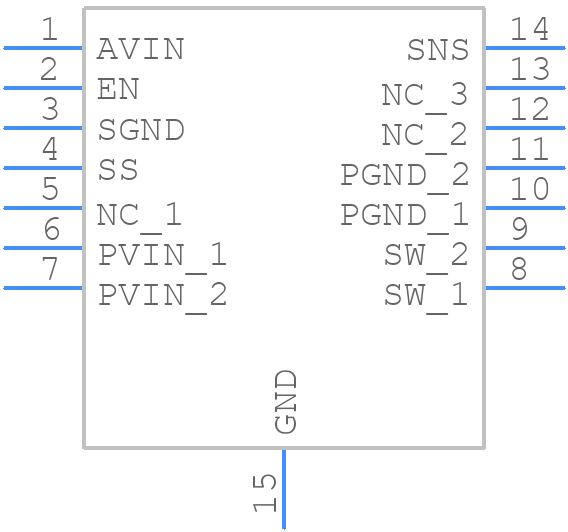

Use the download button to access the LM2852XMXA-0.8/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
