A good PCB layout for the LM2852XMXA-1.2/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and a high ripple current rating. Also, make sure the input capacitor is properly sized and placed close to the device. Additionally, avoid using long input and output traces, and use a solid ground plane to reduce noise and oscillations.
The maximum ambient temperature range for the LM2852XMXA-1.2/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the LM2852XMXA-1.2/NOPB is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM2852XMXA-1.2/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the input and output. Also, check the device's thermal performance and ensure that it's operating within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852XMXA-1.2/NOPB Overview

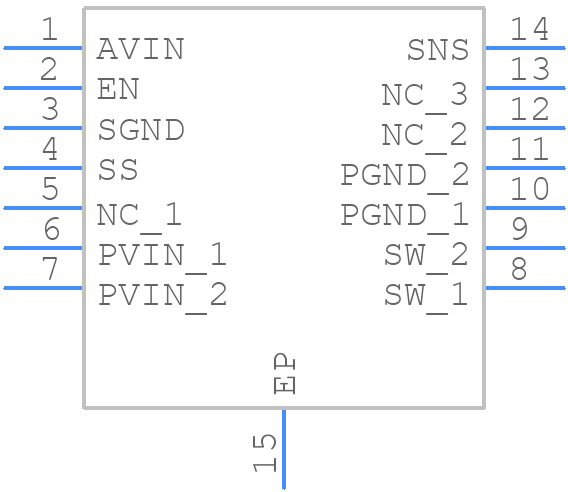

Use the download button to access the LM2852XMXA-1.2/NOPB schematic symbol, PCB footprint, and 3D model.
