Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also add a small ceramic capacitor (e.g. 10nF) between the Vout pin and GND pin to filter out high-frequency noise. Additionally, ensure that the input voltage is within the recommended range and that the output capacitor is of sufficient value and type.
The maximum ambient temperature range for the LM2852XMXA-3.0/NOPB is -40°C to 125°C, but the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and consider thermal management techniques for high-temperature applications.
Yes, the LM2852XMXA-3.0/NOPB is qualified for automotive and high-reliability applications, but it's recommended to follow the relevant industry standards and guidelines, such as AEC-Q100, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
The power dissipation of the LM2852XMXA-3.0/NOPB can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be estimated from the datasheet's efficiency vs. output current graph. It's recommended to consider the worst-case scenario and to add a margin for thermal derating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852XMXA-3.0/NOPB Overview

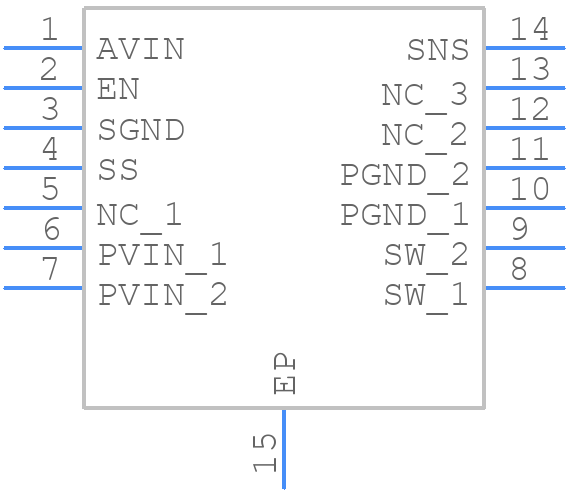

Use the download button to access the LM2852XMXA-3.0/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
