Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure accurate and stable output voltage, make sure to use a high-quality output capacitor with low ESR, follow the recommended input and output capacitor values, and keep the input voltage within the specified range. Additionally, ensure that the feedback resistors are of high precision and low tolerance.
Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V or lower to ensure reliable operation and to prevent damage to the device.
While it's possible to use a different inductor value, it's not recommended as it may affect the device's performance and stability. The recommended inductor value is chosen to ensure optimal performance and efficiency. If a different inductor value is used, it may require additional design and testing to ensure the device operates correctly.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet. Additionally, make sure to keep the device within its specified operating temperature range to prevent thermal shutdown or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852XMXAX-1.2/NOPB Overview

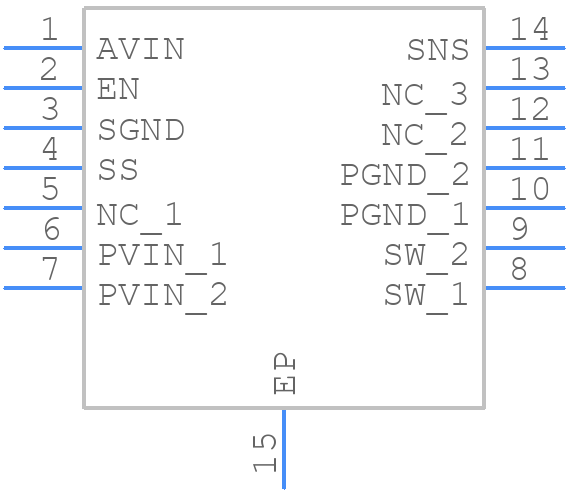

Use the download button to access the LM2852XMXAX-1.2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
