Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The maximum ambient temperature range for the LM2852YMXAX-2.5/NOPB is -40°C to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the output current and voltage according to the temperature derating curves in the datasheet.
Yes, the LM2852YMXAX-2.5/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Use the equations provided in the datasheet to calculate the power dissipation (PD) and junction temperature (TJ) based on the input voltage, output voltage, output current, and ambient temperature. It's essential to ensure the junction temperature remains within the recommended range to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852YMXAX-2.5/NOPB Overview

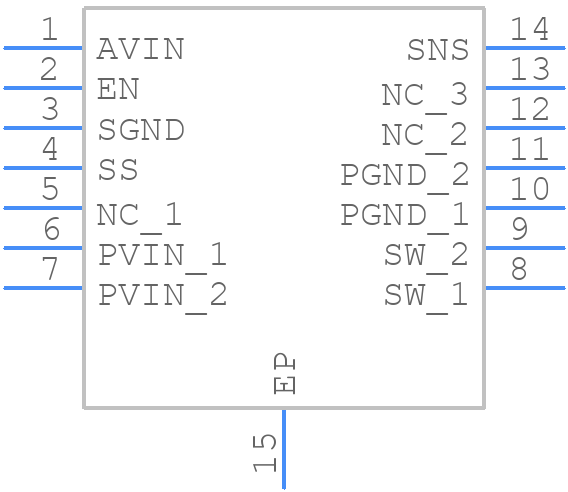

Use the download button to access the LM2852YMXAX-2.5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
