LM285DRG4-1-2 - Texas Instruments

Description: V-Ref Precision 1.235V 20mA 8-Pin SOIC

Download LM285DRG4-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

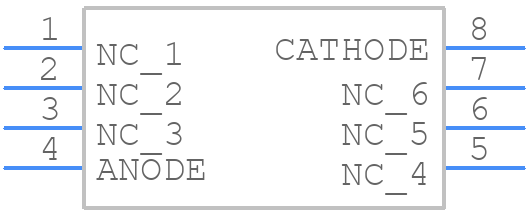

Symbol
LM285DRG4-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM285DRG4-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM285DRG4-1-2 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM285DRG4-1-2 Details

  • Manufacturer Part Number:

    LM285DRG4-1-2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.247 V

  • Output Voltage-Min:

    1.223 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    1%

  • Width:

    3.9 mm

LM285DRG4-1-2 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-grounded layout with the voltage reference at the center, and decoupling capacitors placed close to the device. A solid ground plane and short traces can also help reduce noise and improve performance.
  • To ensure stability, make sure to follow the recommended operating conditions, including a minimum load capacitance of 10nF and a maximum load capacitance of 100nF. Also, avoid using long traces or wires that can introduce inductance and cause oscillation.
  • The typical start-up time for the LM285DRG4-1-2 is around 10ms, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • No, the LM285DRG4-1-2 is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage reference, but it's not intended to regulate voltage or provide a high current output.
  • The LM285DRG4-1-2 has a typical temperature coefficient of 10ppm/°C, which means that the output voltage can vary by up to 10ppm for every degree Celsius change in temperature. This can affect the accuracy of the voltage reference, especially in high-precision applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM285DRG4-1-2 Overview

Use the download button to access the LM285DRG4-1-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285, or try a keyword search, such as Voltage References

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
