A good PCB layout for the LM2876TF/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, using a shielded inductor and placing it away from other components can help reduce EMI.
The inductor value depends on the output voltage, output current, and switching frequency. A general rule of thumb is to choose an inductor with a value between 10-20 uH for most applications. However, it's recommended to use the inductor selection guide provided by Texas Instruments or consult with an applications engineer for specific guidance.
The LM2876TF/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the maximum junction temperature is 150°C, and the device should be derated above 85°C to ensure reliable operation.
Yes, the LM2876TF/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, it's recommended to consult with Texas Instruments or a qualified applications engineer to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM2876TF/NOPB, start by checking the PCB layout, component values, and soldering quality. Ensure that the input and output capacitors are properly sized and placed, and that the inductor is properly selected. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2876TF/NOPB Overview

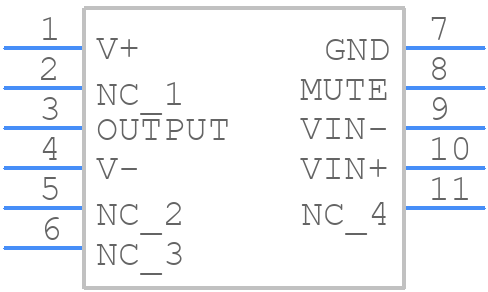

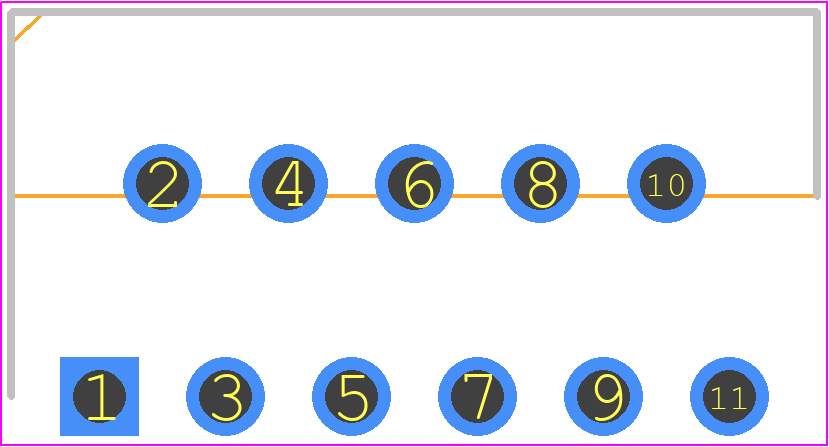

Use the download button to access the LM2876TF/NOPB schematic symbol, PCB footprint, and 3D model.
