LM2917MX/NOPB - Texas Instruments

Description: Voltage to Frequency & Frequency to Voltage Freq-Vtg Cnvtr

Download LM2917MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

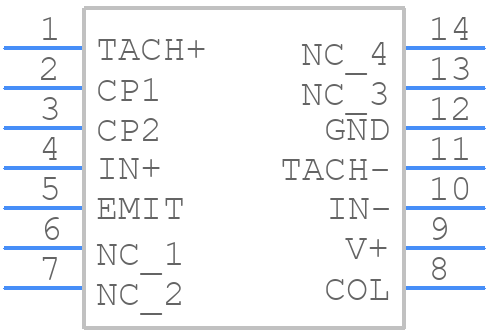

LM2917MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2917MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D(R-DPSO-G14)
click to zoom
3D Models
LM2917MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D(R-DPSO-G14)
click to zoom

LM2917MX/NOPB Details

  • Manufacturer Part Number:

    LM2917MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    28 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM2917MX/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2917MX/NOPB is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure accurate voltage regulation, it is essential to use a stable input voltage, ensure proper decoupling, and follow the recommended PCB layout guidelines. Additionally, selecting the correct output capacitor and resistor values is crucial for stable operation.
  • The minimum input voltage required for the LM2917MX/NOPB to operate is 7.5V. Operating the device below this voltage may result in unstable or incorrect output voltage regulation.
  • The LM2917MX/NOPB is rated for operation up to 125°C. However, it is essential to consider the device's power dissipation and thermal management when operating in high-temperature environments to prevent overheating and ensure reliable operation.
  • To protect the LM2917MX/NOPB from input voltage transients and spikes, it is recommended to use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, using a filter capacitor at the input can help to reduce noise and transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2917MX/NOPB Overview

Use the download button to access the LM2917MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM291, or try a keyword search, such as Analog Special Function Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
