LM3146M - Texas Instruments

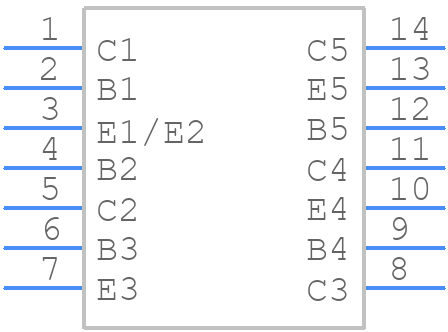

LM3146M Details

• Manufacturer Part Number:

  LM3146M

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SMALL OUTLINE, R-PDSO-G14

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8541.21.00.75

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  LOW NOISE

• Collector Current-Max (IC):

  0.05 A

• Collector-Emitter Voltage-Max:

  30 V

• Configuration:

  COMPLEX

• DC Current Gain-Min (hFE):

  30

• Highest Frequency Band:

  VERY HIGH FREQUENCY BAND

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e0

• Number of Elements:

  5

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  NPN

• Power Dissipation Ambient-Max:

  0.5 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  AMPLIFIER

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  500 MHz
