LM3242TMX/NOPB - Texas Instruments

Description: 6MHz, 750mA Miniature, Adjustable, Step-Down DC-DC Converter with Bypass

Download LM3242TMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

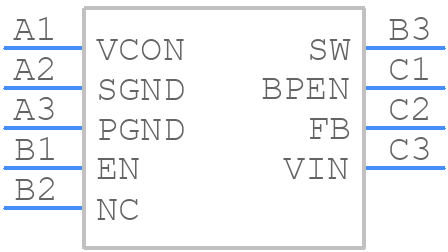

LM3242TMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3242TMX/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFQ0009_2020
click to zoom
3D Models
LM3242TMX/NOPB - Texas Instruments - 3D model - BGA - YFQ0009_2020
click to zoom

LM3242TMX/NOPB Details

  • Manufacturer Part Number:

    LM3242TMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.4 TO 3.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.48 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.675 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    6300 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.355 mm

LM3242TMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM3242 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The output capacitor should be chosen based on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. TI provides a capacitor selection guide in the datasheet.
  • The LM3242 can handle an input voltage up to 42V, but it's recommended to keep the input voltage below 40V to ensure reliable operation and to prevent damage to the device.
  • The LM3242 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • To ensure stability, it's recommended to follow the datasheet guidelines for output capacitor selection, input capacitor selection, and PCB layout. Additionally, it's recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to prevent oscillation.
