The maximum operating temperature range for the LM336D-2.5 is -40°C to 85°C.
To ensure the output voltage remains stable over time, it's essential to decouple the input and output pins with capacitors, and to use a low-ESR capacitor on the output pin to filter out noise and ripple.
No, the LM336D-2.5 is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage reference, not to regulate voltage. If you need a voltage regulator, consider using a separate device, such as the LM317 or LM338.
The output impedance of the LM336D-2.5 can be calculated using the formula: Zout = (ΔVout / ΔIout) || Rload, where ΔVout is the change in output voltage, ΔIout is the change in output current, and Rload is the load resistance.
Yes, the LM336D-2.5 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high accuracy, low noise, and robust design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM336D-2-5 Overview

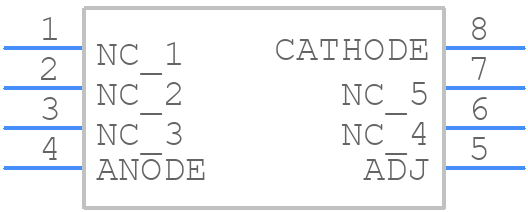

Use the download button to access the LM336D-2-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM336,
or try a keyword search, such as Voltage References
