Texas Instruments provides a recommended PCB layout for the LM3370SDX-4221/NOPB in the datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure accurate and stable output voltage, it's essential to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value. The datasheet recommends a minimum capacitance value of 10uF. Additionally, the output voltage can be adjusted using the ADJ pin, and it's recommended to use a voltage divider network with a high-precision resistor to set the desired output voltage.
The maximum input voltage that can be applied to the LM3370SDX-4221/NOPB is 42V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a transient voltage suppressor to protect the device from voltage spikes or surges.
The LM3370SDX-4221/NOPB has built-in overcurrent protection, which limits the output current to a maximum value of 1.5A. However, it's still recommended to add external protection components, such as a fuse or a current-limiting resistor, to prevent damage to the device and the PCB in case of a short-circuit condition.
The operating temperature range of the LM3370SDX-4221/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3370SDX-4221/NOPB Overview

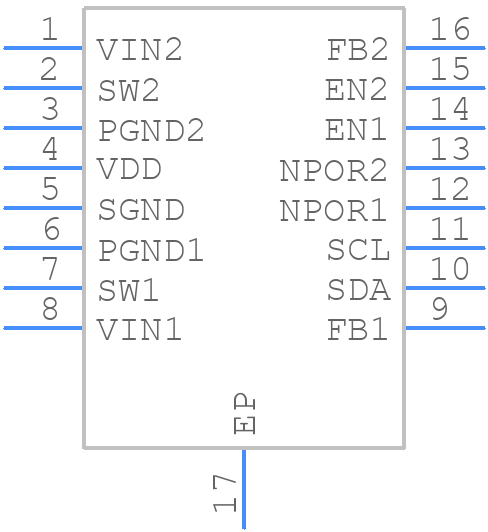

Use the download button to access the LM3370SDX-4221/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM337,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
