LM339BIDR - Texas Instruments

Description: Analog Comparators 36-V, -40C to 85C quad standard comparator 14-SOIC -40 to 85

Download LM339BIDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

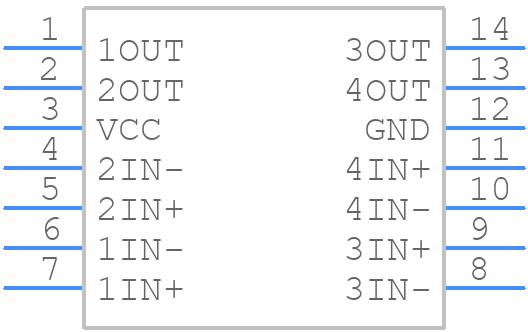

Symbol
LM339BIDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM339BIDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
LM339BIDR - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

LM339BIDR Details

  • Manufacturer Part Number:

    LM339BIDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Bias Current-Max (IIB) @25C:

    0.025 µA

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    1000 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    38 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM339BIDR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 30V, but it's recommended to keep it below 15V to ensure proper operation and prevent damage to the device.
  • Yes, you can use the LM339BIDR as a comparator with hysteresis by adding external resistors and capacitors to create a Schmitt trigger circuit. This can help to reduce noise and oscillations in the output.
  • To ensure that the output of the LM339BIDR is not oscillating, make sure to add a pull-up or pull-down resistor to the output pin, and also consider adding a small capacitor (e.g. 10nF) between the output and ground to filter out high-frequency noise.
  • No, the LM339BIDR is not designed to be used as a voltage regulator. It's a quad comparator, and its output is a digital signal that indicates whether the input voltage is above or below a certain threshold. If you need a voltage regulator, consider using a dedicated voltage regulator IC like the 78L05 or TLV703.
  • The minimum input voltage required for the LM339BIDR to operate is 2V, but it's recommended to use a minimum of 4V to ensure proper operation and accuracy.
