LM339LVRTER - Texas Instruments

Description: Low-voltage commodity comparator

Download LM339LVRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

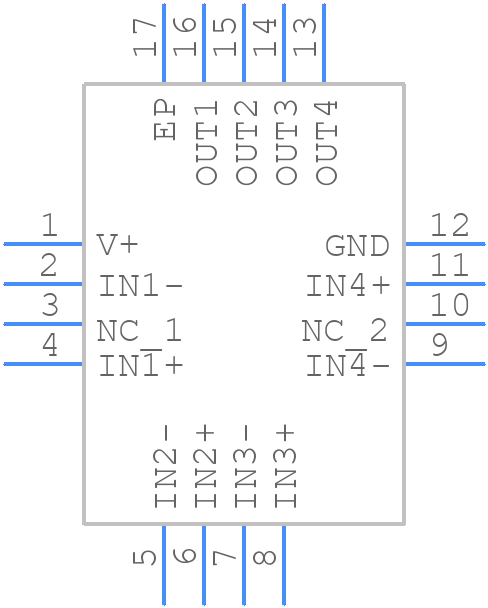

LM339LVRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM339LVRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
LM339LVRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

LM339LVRTER Details

  • Manufacturer Part Number:

    LM339LVRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-12-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Bias Current-Max (IIB) @25C:

    0.000005 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    600 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM339LVRTER Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM339LVRTER is 640mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • To ensure the stability of the comparator output, it is recommended to use a bypass capacitor (e.g., 0.1uF) between the VCC pin and GND, and to minimize the stray capacitance and inductance in the input and output circuits.
  • The recommended operating voltage range for the LM339LVRTER is 2.7V to 5.5V, although it can operate down to 2.3V with reduced performance.
  • The input voltage range of the comparator is from -0.3V to VCC + 0.3V. If the input voltage exceeds this range, it may cause incorrect operation or even damage the device. Use voltage limiting resistors or clamping diodes to ensure the input voltage stays within the recommended range.
  • The hysteresis pin (HYST) is used to adjust the hysteresis voltage of the comparator. By connecting a resistor and capacitor between the HYST pin and GND, you can set the hysteresis voltage to a desired value, which helps to prevent oscillations and ensure stable output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM339LVRTER Overview

Use the download button to access the LM339LVRTER schematic symbol, PCB footprint, and 3D model.
