Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure the LM3402HVMMX/NOPB operates within its SOA, calculate the maximum junction temperature (TJ) using the thermal resistance (RθJA) and power dissipation (PD) values provided in the datasheet. Then, ensure that TJ is below the maximum rated value (150°C) and that the input voltage and output current are within the recommended operating ranges.
Input voltage ripple can affect the output voltage regulation of the LM3402HVMMX/NOPB. To minimize this effect, use a high-quality input capacitor with low ESR and ensure that the input voltage is well-regulated. The datasheet provides guidance on input capacitor selection and input voltage requirements.
Yes, the LM3402HVMMX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade ICs and is manufactured using a high-reliability process. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM3402HVMMX/NOPB, start by verifying that the input voltage and output current are within the recommended operating ranges. Check the PCB layout for any errors or omissions, and ensure that the input and output capacitors are properly selected and installed. Use an oscilloscope to measure the output voltage and input voltage ripple, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3402HVMMX/NOPB Overview

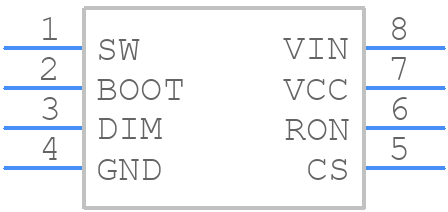

Use the download button to access the LM3402HVMMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM340,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
