Part Image

LM3402MR/NOPB - Texas Instruments

Description: Texas Instruments LM3402MR/NOPB, Step Down DC-DC Converter, 500mA, Adjustable, 0.2 → 40 V, 8-Pin PSOP

Download ECAD Model

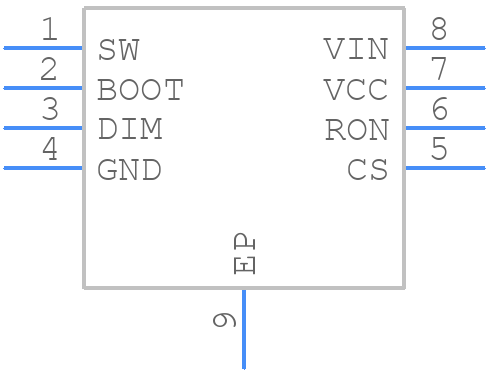

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LM3402MR/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - dda (r-pdso-g8)
click to zoom

3D Models

LM3402MR/NOPB - Texas Instruments  - 3D model - Small Outline Packages - dda (r-pdso-g8)
click to zoom

LM3402MR/NOPB Details

  • Manufacturer Part Number:

    LM3402MR/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    LSOP,

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.68

  • Samacsys Modified On:

    2020-07-10 06:26:18

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    0.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

LM3402MR/NOPB Overview

Use the download button to access the LM3402MR/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM340, or try a keyword search, such as Switching Regulator or Controllers

Parts related to LM3402MR/NOPB

Showing 0 results

LM3402MR/NOPB Alternates

Showing results

Image Part Number Model
Part Image LM3402MR Texas Instruments

0.94A SWITCHING REGULATOR, PDSO8, PLASTIC, TSOP-8
