LM3429MH - Texas Instruments

Description: N-Channel Controller for Constant Current LED Drivers

Download LM3429MH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

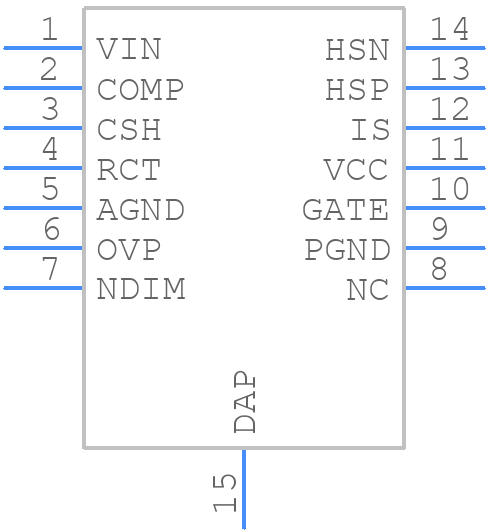

Symbol
LM3429MH - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3429MH - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP
click to zoom
3D Models
LM3429MH - Texas Instruments - 3D model - Small Outline Packages - PWP
click to zoom

LM3429MH Details

  • Manufacturer Part Number:

    LM3429MH

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, TSSOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Supply Voltage1-Max:

    75 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LM3429MH Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to help dissipate heat. The device should be placed near a thermal pad or a heat sink to improve thermal performance.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of less than 1 ohm. Additionally, the input capacitor should be placed as close to the VIN pin as possible to reduce noise and ripple.
  • Although the datasheet specifies a maximum input voltage of 42V, it is recommended to limit the input voltage to 40V to ensure reliable operation and to prevent damage to the device.
  • The power dissipation of the LM3429MH can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where IQ is the quiescent current. The calculated power dissipation should be within the recommended operating range to ensure reliable operation.
  • Texas Instruments recommends using a pi-filter configuration with a series inductor and shunt capacitors to reduce EMI. The values of the inductor and capacitors should be chosen based on the specific application and frequency range of interest.
