SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Voltage-Max:
75 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Supply Voltage1-Max:
75 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
2 MHz
LM3429Q1MH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power sequencing and voltage ramp rates. The datasheet provides some guidelines, but it's also important to consider the specific application requirements and ensure that the input voltage and current are within the recommended specifications.
To ensure EMI and EMC compliance, it's essential to follow good PCB layout practices, such as keeping the switching node (SW) away from sensitive analog circuits, using a good ground plane, and minimizing loop areas. Additionally, the use of EMI filters and shielding may be necessary depending on the specific application and regulatory requirements.
To optimize efficiency, it's essential to select the right components, such as the inductor and capacitors, and to optimize the switching frequency and duty cycle. The datasheet provides some guidelines, but simulation tools and experimentation may be necessary to achieve optimal efficiency in a specific application.
To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This includes selecting a suitable heat sink, applying thermal interface material, and ensuring good airflow. The datasheet provides some guidelines, but additional resources, such as thermal simulation tools, may be necessary to ensure optimal thermal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3429Q1MH/NOPB Overview

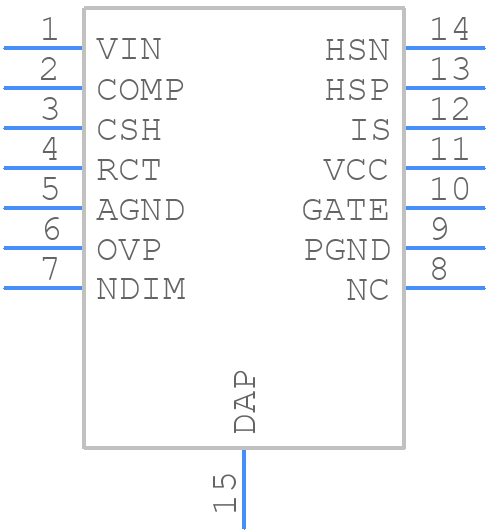

Use the download button to access the LM3429Q1MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM342,
or try a keyword search, such as Display Drivers
